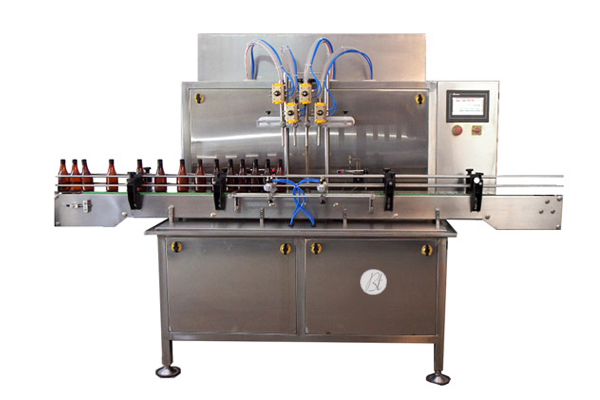

Machine Structure :

  • The machine frame structure is composed of MS material and covered with $.5.304 sheet.
  • The MOC for contact parts that come into indirect contact with the product will be S.S. 316, whereas the MOC for non-contact parts will be $.S. 304/Delrin/POM.
  • $5304 The control panel is located inside the machine frame
  • machine direction is left to right.

Technical Specifications

Direction : Left to right
Production speed : 20 to 60 bottle/min (depends on filling volume nature of liquid & Bottle/neck size)
Filling Nozzles : Four Nozzle (SS 316)
Syringe Fill Range : 50ml to 1000ml
Servo Motor and Driver : 750 Watt (4Nos) [Make : Delta/Panasonic / Fuji l
HMI & PLC : 7″ (1 No) [Make : Delta/Panasonic / Fuji 1
Overall Dimension in mm : 1300(1) X1030(w)X1275(h)
Sensors : Product sensor & Proxy Sensor
Rotary Gear Pump : 0.5″ SS 316 Gear pump with mounting Bracket.

Machine Output :

  •  Filling Range – 20 to 60 BPM (Bottle/Min) (Depending upon the Characteristics of the Liquid   And Filling Volume)
  •  Accuracy – +2% (considering Liquid viscosity, Relative humidity and temperature)

Salient Features

  • Machine has no bottle and a filling stop system.
  • Made of SS-304.
  • All contact components are constructed of SS-316 material.
  • PLC and HMI-based machine control system
  • Bottles are fed and exited automatically.
  • MC for overload protection and prevention of shot-circuit.
  • Automatic bottle counter system.
